No power required silent 4G wireless DA600+ perimeter alarm

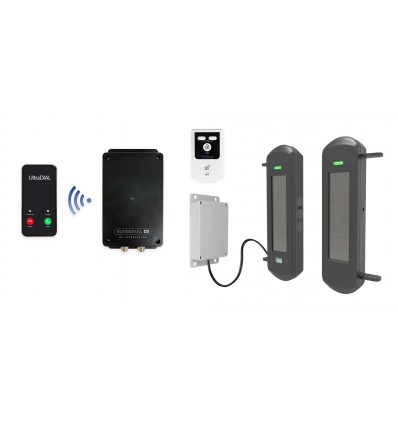

Our unique stand-alone Battery powered Silent 4G GSM Wireless Perimeter Alarm supplied with:

• 1 x set of Solar Laser Beams (can be mounted up to 100 metres apart).
• 1 x Wireless Transmitter (connected to the Beams by cable).
• 1 x Battery powered UltraDIAL Wireless 4G GSM Dialler (would be hidden away out of sight).

For locations with No Access to a Power Supply, and allowing the GSM Dialler to be safely hidden away, it will silently contact key-holders by Phone & SMS !!

The Alarm is Armed & Disarmed using Remote Control from up to 100 metres away.

Additional Wireless Solar Sirens can be added should you want to make some sound, these can be mounted up to 100 metres away from the Beams if required, this still leaves the GSM Dialler silently calling key-holders, the options include:

• Large Solar Siren & Strobe Light 004-2810
• Solar Siren & LED 007-0221

How it works:

The Laser Beams are powered by built in lithium batteries which are charged and maintained by the built in Solar Panels, they need to be mounted (lined up to each other) up to 100 metres away (can be less) using the brackets supplied. The Beams have a pair of invisible infrared Beams (60 mm apart) both need to be breached at the same time (this avoids false alarms from small animals).

One of the Beams is supplied with a twin core cable which is connected into a Battery powered Wireless Transmitter which would normally be fitted onto the back of a Post.

The UltraDIAL 4G Dialler is fully weatherproof (IP66) and powered by 3 x lithium AA Batteries and would be hidden away up to 30 - 40 metres away from the Beams.

The complete system is Armed or Disarmed using the Remote Control supplied (further remote controls can be purchased) from up to 100 metres away.

When triggered the Alarm will silently contact up to three key-holders by Telephone (with your personal pre-recorded message) and SMS. You can select to turn the calls or text message off during programming. If you have also added one or more Solar Sirens, these can be making all the sound in a nearby location taking all attention away from the Alarm.

This unique Perimeter Alarm allows you to protect up to 100 metres in even the most remote locations provided you do have a mobile signal on site, ideal for:

• Yards.
• Gateways.
• Vacant Buildings.
• The list is endless.

Communication:

The Alarm communicates via the mobile phone networks (nano sim card required), it will contact up to three key-holders by Telephone (with your own pre-recorded message) & Text Message when activated.

We do offer two Roaming SIM Cards from a third party supplier (at cost) designed for use in Alarms & Tracker Systems, these are low level contract sim cards (working on a direct debit) operating over all the major UK Networks ensuring your Alarm has the best signal available in all locations.

These can be selected within the drop down options near the Add to Card Button.

The two options are our 20 Plan (click here) & 50 Plan (click here), please click the links to read all about them.

You can also purchase the product with no sim card and simply use your preferred supplier (many options are available).

Contacting Key-holders:

The Alarm will contact between 1 & 3 key-holders (depending on how you have chosen to program the alarm) by Telephone & SMS (either can be turned off whilst programming the alarm) when activated.

It will normally take take between 30 - 60 seconds to call the first key-holder as the battery wakes up (this can vary depending on the mobile phone networks at the time).

Recording Message:

You can record a 30 second message into the Alarm, which will be replayed to the key-holders when the Alarm calls them.

Arming & Disarming:

The Alarm is Armed & Disarmed by using the Remote Control from up to 100 metres away, up to 9 Remote Controls can be used with each Alarm.
There is a 30 second Exit Delay built into the Alarm for easy use.

Receiving a Call:

When the Alarm calls the key-holders, there is the choice to:

• Listen to your pre-recorded message and do nothing (the alarm will contact the other key-holders).
• Listen to your pre-recorded message and press # on your telephone (this will disarm the UltraDial and prevent it from calling further key-holders).
• Listen to your pre-recorded message and press * on your telephone (this will prevent it from calling further key-holders, but keep the Alarm fully armed (ready for further activations).

Wireless Transmitter:

The Wireless Transmitter supplied connected to the Beam is powered by a CR2 Lithium Battery and is mounted inside a weatherproof mounting box, the transmission range back to the UltraDIAL is 100 metres (line of sight) which equates to around 30 - 40 metres in most applications).

The box is designed for easy and quick installation.

Additional Beams:

It would be possible to add additional sets of Beams with Wireless Transmitters to this Alarm, all connecting to the 4G GSM UltraDIAL Dialler.

Wireless Alarm Detectors:

It is possible to add additional Wireless Sensors into the UltraDIAL should you have buildings nearby (20 - 40 metres away) that you want to also protect, these include:

• Battery PIR's with Built in Sirens (007-0200).
• Battery PIR's with a Hood & Siren (007-1410).
• Battery Wireless Door Contact (007-0260).

Easy Programming:

It is very easy to program, probably the easiest GSM Alarm to program on the market today by using the small built in keypad, following some very simple instructions.

Weatherproof:

The 4G UltraDIAL is fully weatherproof and rated at IP66 - Refer to manual for correct installation, so can be used in most locations, it is not however designed to be submerged.

Low Battery:

The Alarm will send the primary key-holder a SMS (text message) if the batteries are getting low.

Status Report:

A status report can be obtained by sending the device a Text Message.

Security Screws:

The lid is fitted with 4 x security screws and a tool is supplied as standard.

Full Beam Information:

The 'R' Beam is supplied with a N/O & N/C Output Cable which is connected into the Wireless Transmitter, the second Beam has no cable connection.

The Beams also have the built in Wireless Transmitter which will trigger the Wireless Siren (004-2810) but can also be used with an indoor Receiver from up to 900 metres away (line of sight), ideal for customers wanting to possibly move the Beams between different locations and applications.

The Dual Detection Technology works by having a pair of Detectors (set 60 mm apart from each other) on each Beam, both Detectors have to be breached simultaneously to create an activation, allowing small animals, insects, leaves & debris to safely pass by.

The Beams are supplied as a pair together with mounting brackets, they need to be installed in such a way that they are facing each other up to a maximum of 100 metres apart.

They are easy to line up using the built in screen together with the option of having a low audible beep a few seconds after being breached (which some customers like to keep turned on), while some customers use this feature during the initial set up mode.

The Beams are powered by built in lithium batteries which are charged and maintained by the built in Solar Panels, the Solar Panels require daylight to function, suitable for most outdoor applications.

There is an optional rear mounted charging point for customers who may have to fit one or both beams in the shade, these could then have a maintenance charge a few times a year using a plug in transformer or battery pack.

A unique Perimeter Alarm, Please Contact Us for Advice !!
