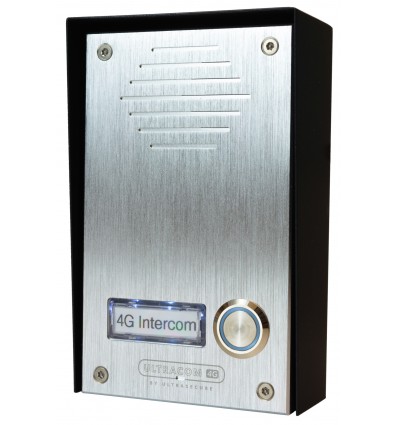

4G GSM audio intercom UltraCOM4G

Our UltraCOM4 Single channel 4G GSM Audio Intercom allows homeowners to communicate with visitors from anywhere in the world, together with being able to release locked Gates & Doors.

After having a two way communication (from anywhere in the world) with the visitor, you can choose to release a locked Gate or Door (If the Intercom is connected to one).

The Intercom operates using Mobile Phone technology (SIM Card). A mobile phone signal is required at the location of the Intercom. The Intercom uses a Nano size SIM Card (not supplied).

You can choose to use SIM Cards from all of the major UK Networks, finding one with a good Network at the location of the Installation.

Packed full of features including:

• Up to 9 x Telephone Numbers can be programmed for the Intercom to call in sequence once the visitor has pressed the button (landline or mobile).
• Clear Two-Way Communication.
• Sturdy Anti-Vandal Design (die cast aluminium).
• Can be Surface or Flush Mounted.
• It has 2 x sets of N/O & N/C Output Relays (to operate gates, doors & locks).
• Adjustable Relay Duration (1 - 99 seconds)
• The Relays can be activated after communication with a Visitor.
• Authorised Numbers can activate Output Relays by Telephone Call or SMS.
• Supplied with a GSM Aerial with 3 metres of Cable (to help with network signals).
• Mobile Phone Signal Strength Test Available.
• Speaker & Microphone Volume Control.
• Adjustable time delay between the system calling the 1st - 9th Phone.
• Listen in Function available.
• Optional Gate or Door Monitor (sms if triggered).
• 12 - 24v Power Supply: 3-pin Transformer Supplied (you can use outputs from the Gate or Door circuits).
• Option 12 - 24v DC Output (max 500 m/A).
• Name Label (can be written on by owner).
• SIM Card Operated (not supplied as standard, due to various networks available).
• Fully Weatherproof: IP54.
• History Log Available.

Quick & Easy to Install:

Programming:

The Intercom is programmed by using Telephone Calls or SMS (text message)

Operating the System:

When a Visitor Arrives & Presses the Call Button.
The Intercom calls the first key-holders programmed number (if it is not answered it will call the 2nd through to the 9th programmed number).
When a key-holder answers, a two way communication is opened up between the key-holder and Visitor.
If the key-holder wants to operate a Gate or Lock, they press 1 or 4 on their Telephone Keypad (this triggers output relay 1 or 2, which should be connected to the Gate or Door Lock)
End the Call.

A great GSM 4G Phone Gate & Door Intercom for use in Domestic & Commercial applications.

Please Contact us for Advice
