Additional UltraCOM3 - black caller station & black hood

Additional 'UltraCom3' 600 metre Caller Station (black with Black hood) can be used in the following applications:

• Single Property where customer requires a built in keypad (multiple handsets can be used within the same property).
• Up to Nine Properties for Apartments & Flats (multiple handsets can be used in any given apartment if required).

Please Note: Handsets are Required !!

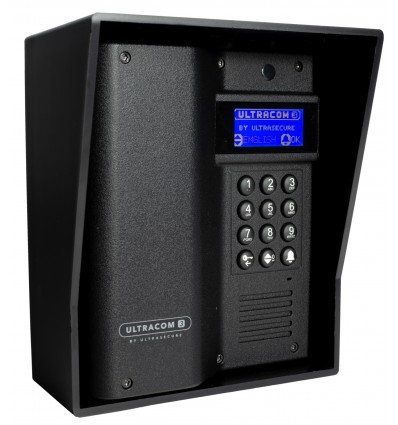

Caller Station:

The Caller Station is supplied with a clear backlit Display Screen which is used (via the built in keypad) to select the resident for communication and to program & manage the system.

The Backlit Display Screen has 4 settings:

• Always ON (not recommended when using battery power).
• Touch Screen (wakes up upon the touch of any key).
• Low PIR (prox) Movement (screen wakes up when someone walks past at a distance of 2.5 metres).
• High PIR (prox) Movement (screen wakes up when someone walks past at a distance of 5 metres).

The Keypad (pin) can also be used to operate the Output Relay for trusted visitors or select the chosen resident if the number is known.

The Caller Station is powered by:

• 12v - 24v DC (max 2 amp) which is often taken from the circuit board on Electric Gates & Doors.
• Batteries (4 x C Batteries), which will operate for up to 12 - 18 months in most domestic applications.
• Plug in 12v DC Transformer (3 or 2-pin).

Output Relay

The Caller Station has a set of N/O or N/C Output Relays with adjustable duration from 1 - 99 seconds.

Wireless Range:

The operational Wireless range of the UltraCOM3 is 600 metres (line of sight), which often equates to 300 - 400 metres in normal applications (depending on the nature and quantity of any obstructions), this can be helped by adding the optional Aerial.

Aerial:

We can offer an additional Aerial which is designed to help Wireless communication, it is not a booster aerial, it is an aerial which allows for a more direct wireless path back to the Handset, the most common use would be to fit the Aerial on the back of a large Gate Post which immediately removes the Gate Post from blocking any Wireless signals.

Option Extras:

The following accessories can be added to this Wireless Intercom System, including:

• External Aerial (very popular with being fitted onto the rear of a gatepost or pillar to optimize the wireless operating range).
• Portable Handsets.
• Plug in Power Supply.
• External Aerial Extension Cables.

This is a unique Wireless Intercom System that can be powered by DC or Battery, and can operate with up to Nine Apartments (if expanded) or with a single dwelling should the owners require multiple Portable Handsets.

Please Contact Us for any Advice !!
