Protect 800 Long range 800 metre Gate or Door Contact

Wireless gate contact for the Protect 800 alarms

Reference: 004-4300-00

Long Range Battery Powered Wireless (800 metre) Gate or Roller Shutter Door Contact for use with the Protect 800 Alarms.

156,34 € inc. VAT

In stock Pre-order: expected Out of stock

Order now and we will send it as soon as it is back in stock.

This item cannot be ordered at the moment. Ask us and we will tell you when it is back or suggest an alternative.

Ask about availability

Quantity discounts

QuantityUnit priceYou save

Not sure it's the right kit for your need?

Free advice from our security specialists: we help you choose, set up and install.

Ask about this product

Description

Long Range Battery Powered Wireless (800 metre) Gate or Door or Roller Shutter Door Contact for use with the Protect 800 Alarms.

The Battery powered Transmitter Board is located inside a Weatherproof Box, the operating range back to any Protect 800 Receivers is 800 metres (line of sight), which equates to round 400 - 600 metres in most applications.

The Transmitter is powered by a 3v CR123A Battery (supplied) which would last 12 - 18 months in most applications, the Receivers would notify you in a low battery situation.

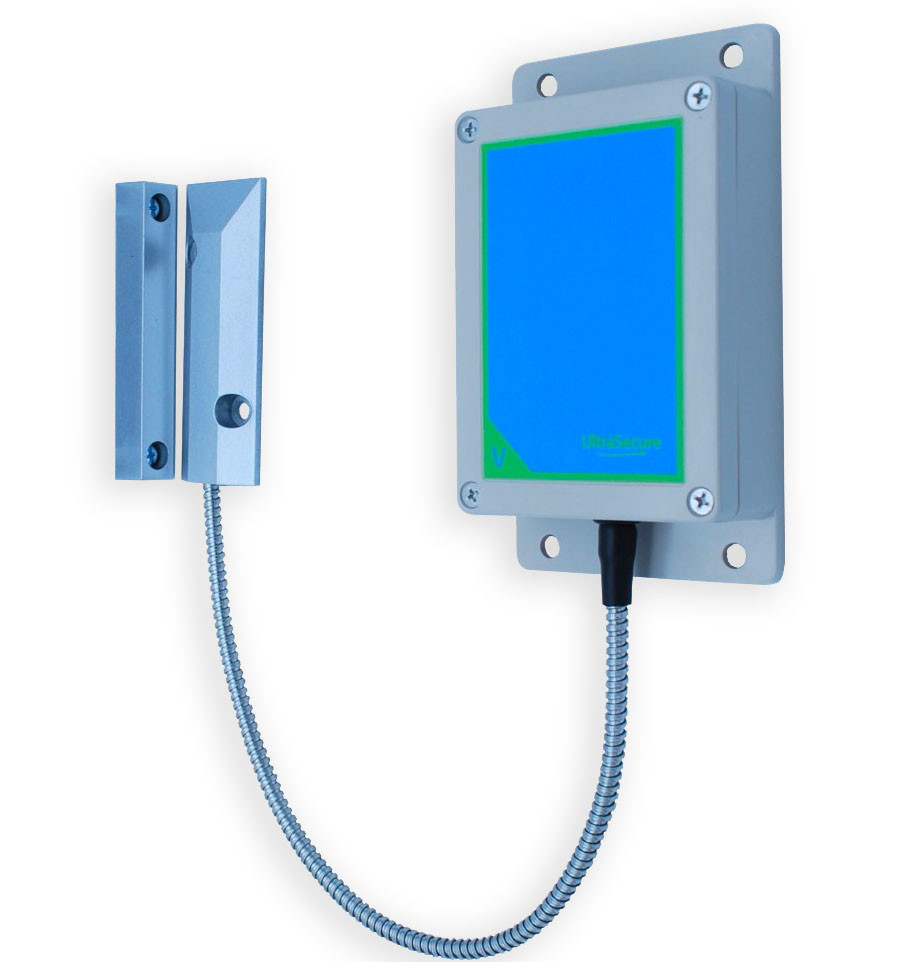

Connected to this Transmitter Box is a Wired Contact with an armoured protective sleeve, the Contact would be fitted to the Gate Post (or door frame or floor if used with door or roller shutter contact).

The Magnet would be fitted to the Gate, Door or Roller Shutter Door, it is supplied with an optional right hand mounting bracket to aid installation.

What's in the box

2 items
  • 1×Protect 800 Transmitter inside a weatherproof Box with Battery
  • 1×Wired N/O & N/C Gate Contact Kit

Specifications

17 details

Transmitter

Wireless range
800 metre (line of sight)
Power supply
1 x 3v Lithium CR123A Battery
Battery life
12 - 18 months (most applications)
Size
65 x 33 x 15 mm
Activation methods
  • Wired Input: Yes (N/O or N/C Momentary Volt Free, when used as a circuit board)

Mounting box

Material
Plastic
Weatherproof
IP65
External size
150 (L) x 85 (W) x 34 (D) mm
Internal size
106 (L) x 76 (W) x 28 (D) mm
Label
V range

Magnetic contact

Switch type
Normally Closed
Size of switch
105 x 37 x 10 mm
Cable length to switch
360 mm
Cable protection
Armoured
Magnet size
105 x 15 x 15 mm
Right hand bracket size
105 x 50 x 50 mm
Use with
Gate, Door or Roller Shutter
