Temperature & humidity monitor (4G GSM) – 4 x 5m probe with power status alert (KP)
Reference: 008-1970-00
4 x channel 4G KP GSM Temperature, Humidity & Power Status Monitor, supplied with 4 x 5 metre Probes , communicates with up to 10 x key-holders by SMS & Telephone. Easy to program using SMS or APP.
838,84 € inc. VAT
Order now and we will send it as soon as it is back in stock.
This item cannot be ordered at the moment. Ask us and we will tell you when it is back or suggest an alternative.
Ask about availabilityQuantity discounts
| Quantity | Unit price | You save |
|---|---|---|
- Free delivery from €150 Tracked by DHL, 3–5 working days in the EU
- Free returns within 30 days Money-back guarantee
- Secure payment PayPal & credit card
Not sure it's the right kit for your need?
Free advice from our security specialists: we help you choose, set up and install.
Ask about this product
Description
4 x channel KP 4G GSM Temperature, Humidity & Power Status Monitor, supplied with 4 x 5 metre Probes, communicates with up to 10 x key-holders by SMS & Telephone. Easy to program using SMS or APP.
The System will monitor:
- Temperature using up to 4 x 5 metre Probes: -40 - + 80 Degrees (accuracy 0.5 Degrees).
- Humidity: 0 - 99 RH% (accuracy 3%).
- Power Failure: Low & High Voltage Options (ideal for power failure, or solar panel monitors).
The system communicates using a mobile phone SIM Card (not supplied as standard), and will contact up to 10 x key-holders using pre-set user activity settings, the options for the activity settings are:
- All.
- Dial.
- Timer Status Reports.
- Arm - Disarm SMS.
- Alarm.
- Alarm Recovery.
- External Power ON & OFF.
- GPRS Failure.
- Low GSM Signal.
- Relay ON or OFF activation.
Ideal for monitoring all types of locations including:
- Server Rooms.
- Drug Cabinets.
- Freezers.
- Food Storage Rooms.
- Fridges.
- Kennels etc.
- Office Buildings.
Temperature:
The system can be programmed to contact the key-holders if the pre-selected High or Low Temperature has been reached on any given Probe.
Humidity:
The system can be programmed to contact the key-holders if the pre-selected High or Low Humidity has been reached.
Power:
The system can be programmed to contact key-holders if the pre-selected High or Low voltage has been reached, this allows it to be used as a standard mains power failure alert, or a monitor for applications such as Solar Panels (monitoring the batteries).
Status Report:
The system can be programmed to automatically send a status report every day, or pre-selected duration (between 1 to 998 hours).
SIM Card:
We do offer two Roaming SIM Cards from a third party supplier (at cost) designed for use in this Alarm System, these are low level contract sim cards (working on a direct debit) operating over all the major UK Networks ensuring your Alarm has the best signal available in all locations.
The two options are our 20 Plan (click here) & 50 Plan (click here), please click the links to read all about them.
You can also purchase the product with no sim card and simply use your preferred supplier (many options are available).
Back Up Battery:
The system has a built in back up battery which will operate the system for up to 8 hours in normal operation.
Probe:
The Probes can be placed inside Freezers, Fridges etc !!

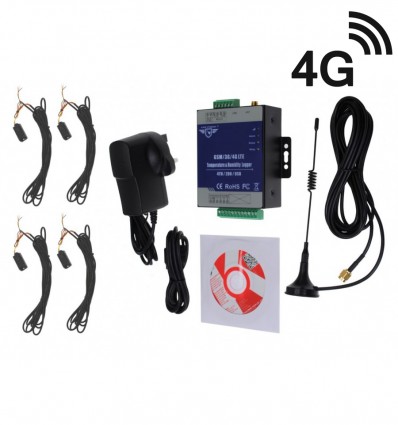

What's in the box
- 1×4 x Channel 4G GSM Temperature Monitor Alarm
- 1×3-pin Plug in Power Supply (2-pin available upon request)
- 1×Manual on Disk
- 1×Aerial
- 1×USB Cable
- 4×5 metre Temperature Probes
Specifications
Control panel
- Communication
- 4G (mobile phone networks)
- Quad band
- 850/900/1800/1900 Mhz
- Communication method
- SMS or Telephone Call
- Programming methods
- SMS
- Easy to Use APP (Android & IOS)
- USB Cable to Computer
- Relay outputs
- 2 (N/O or N/C)
- Relay output rating
- 7 amp 125v AC - 20 amp 14v DC
- Monitors
- Temperature: -40 - + 80 Degrees (accuracy 0.5 Degrees)
- Humidity: 0 - 99 RH% (accuracy 3%)
- Power Failure: Low & High Voltage Options (ideal for power failure, or solar panel monitors)
- Power supply
- Supplied with a 12v 1 amp DC Plug in Transformer (operates on 9 - 36 v DC)
- Probes supplied
- 4 x 5 metre (optional 1 or 20 metre available)
- Contact numbers
- 1 - 10 Key-holders (5 x SMS Only & 5 x SMS & Telephone)
- SMS status reports
- Yes (by SMS Request or by Automatic Status Reports by Set Time Durations)
- Back up battery
- Yes 3.7v 900 maH (8 hours normal use)
- Password protected
- Yes
- Size
- 90 (W) x 85 (H) x 30 (D) mm
- Detachable aerial
- Yes
- Internal 16 MB memory
- Logs 200,000 records
- Mounting method
- DIN Rail
- Power consumption
- 12v 70 mA (standby) & 12v 300 mA (working)
Probe
- Cable length
- 5 metres
- Number of probes
- 4
- Cable
- 3-core
- Cable colours
- Red: VDD
- Yellow: DATA
- Black: GND
- Cable connection method
- Terminal Blocks (on control panel)
Compatible accessories
