Wireless home alarm – external siren with 1 PIR, 1 door/window sensor, 1 internal siren & 1 remote (HY)

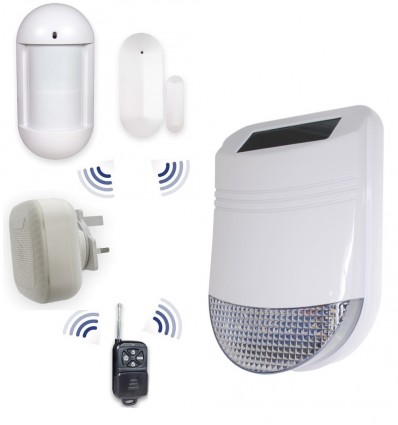

HY Wireless Pet Friendly Burglar Alarm:

• 1 x Battery Door or Window Magnetic Contact.
• 1 x Battery Pet Friendly PIR (only detects animals over 35 kilo).
• 1 x Simple Plug in Internal Siren Receiver.
• 1 x Outdoor Solar Siren & Flashing Strobe.
• 1 x Remote Control.
• Ideal For Protecting small Vulnerable Buildings.
• Ideal for buildings with a potential of rodent or bird problems, or a cat being present.
• Quick & Easy to Install (designed for DIY).
• 95 Decibel Siren.
• Indoor Receiver Plugs Directly into a Wall Socket (UK 3-pin & EU 2-pin).
• Fully Expandable.
• Indoor Receiver can be used in a different Building.
• Controlled by Remote Controls.
• Ideal for many applications including:
  • Home.
  • Garage.
  • Shed.
  • Workshop.
  • Barns.

How it Works:

This Alarm comprises of 1 x Battery Powered Magnetic Contact, 1 x Battery Pet Friendly PIR, 1 x Plug in Internal Siren Receiver, 1 x Solar Siren with Strobe & 1 x Remote Control which are all paired together with a unique and secure wireless code.

The Magnetic Contact is supplied with a battery powered Switch & Magnet, both parts are fitted onto a Door/Window (using simple double sided tape supplied) and adjacent Frame (within 5 mm of each other when closed), if the Door/Window is opened the Switch and Magnet will part which in turn will send a Wireless Signal to the Siren Alarm Receiver.

The Battery PIR is designed to only detect animals weighing over 35 kilo (making it ideal for locations with small rodent or bird problems) would ideally be fitted into the corner or a room and has a detection range of 12 metres. If the PIR detects body heat (over 35 kilo) it will also send a Wireless signal to the Siren Receiver.

If the Internal & External Sirens have been Armed with the Remote Control, both Sirens will activate upon receiving a signal from either device, the Remote Control can also be used to trigger the Sirens by using the built in SOS Buttons or to Disarm both Sirens.

The Internal Siren can be placed in a different building to where the Alarm Sensors are fitted, an example could be:

• Internal Siren inside the House (where there is power), the Solar Siren Outside (on either building) whilst the Sensors could be located inside a nearby Garage, Barn, Workshop or Shed.

Other customers will install both Sirens on the building it is being used in, a flexible Alarm for many applications.

Indoor Siren Receiver:

The Siren Receiver Plugs directly into a UK (3-pin) or EU (2-pin) Wall socket making them very easy and quick to Install.

It has a built in 95 Decibel Siren which can be programmed to operate for 3 minutes or 30 seconds each time it is Triggered.

Up to 32 Pull Cords (or other HY Sensors) can be used at the same time.

Additional Siren Receivers (005-6400) can be added should you want them in different Rooms.

Solar Siren Receiver:

The Wireless Solar Siren is powered by a built in lithium battery which is charged and maintained by the top mounting Solar Panel.

It has a built in 95 Decibel Siren & bright Flashing LED which can be programmed to operate for 3 minutes or 30 seconds upon activation.

Up to 16 Alarm Sensors can be used at the same time.

You could also add a unique Battery 4G Dialler (007-2000) to this Siren should you want Key-holders to be contacted in the event of an activation.

The Siren has tamper switches which would activate the Siren if they were attacked.

Magnetic Contact:

The Magnetic Contact is supplied with a battery powered Switch & Magnet, both parts are fitted onto a Door/Window (using simple double sided tape supplied) and adjacent Frame (within 5 mm of each other when closed), if the Door/Window is opened the Switch and Magnet will part which in turn will send a Wireless Signal to the Siren Alarm Receiver.

It will also operate with the Outdoor Solar Siren (005-6000).

It is powered by 2 x CR2032 batteries and has a LED Indicator built into the front panel.

Additional Magnetic Contacts can be added (please see 005-6410), or a selection of other HY accessories.

HY Wireless Pet Friendly PIR:

• Operates with:
  • Indoor Receiver (005-6400).
  • Outdoor Solar Siren (005-6000).
• Pet Immune (doesn't detect Pets weighing under 35 kilo).
• Battery Powered (2 x AA batteries).
• 12 metre Detection.
• Passive Infra-red (detects body heat over 35 kilo).
• 150 metre Operating Range (line of sight).
• LED Indication.

Remote Control:

The Remote Control has an impressive operating range of 150 metres (line of sight) to the HY Siren Receivers, and can be used to:

• Arm the Siren.
• Disarm the Siren.
• Trigger the Siren (as a panic alarm).

Additional Remote Controls (max 8) can be added (005-6020).

Wireless Operation:

The Wireless operational range between the Magnetic Contact, PIR & Siren Receivers is 150 metre (line of sight) which equates to around 50 - 100 metres in most applications, however one or more signal Repeaters can be added which can massively extend this range, these include:

• Indoor Plug in Signal Repeater (005-0760).
• Outdoor Solar Siren & Repeater (005-6000) which can be used with or without the loud Siren.

Expandable:

This Pull Cord Alarm can be expanded to cover many different applications, these include:

• SOS Pull Cords (005-6470).
• Additional Indoor Siren Receivers (005-6400).
• Additional Outdoor Solar Sirens (005-6000).
• Additional Pet PIR's (005-6430).
• Smoke & Heat Detectors (005-6050).
• Water Sensors (005-6440).
• Alarm Sensors (Door/Window Contacts & PIR's).
• Additional Remote Controls (005-6020).

Please Contact Us if you have any Questions !!
