KP9 4G GSM gate alarm kit

KP9 4G GSM Wireless Gate Alarm will contact key-holders by Telephone & Text Message at the same time as activating the built in Siren (can be turned off when a silent alarm is required) if the Gate is opened.

You could also program the control panel just to give you a Chime (doorbell) every time the Gate is opened, although it would not call out in this mode.

Up to 94 additional accessories can still be added to this Gate Alarm allowing you to get a better return on your investment by also using it as a:

• Intruder Alarm.
• Smoke Alarm.
• Water Alarm.
• Panic & Safety Alarm.

This Alarm operates on 2G, 3G & 4G Networks !!

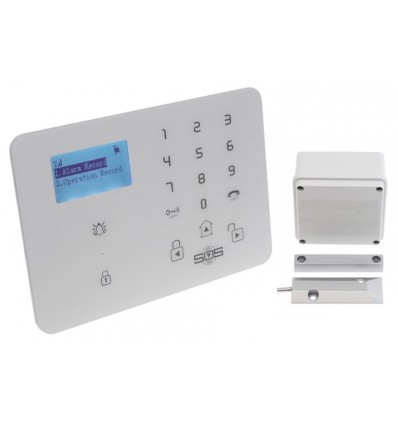

With this standard kit, there is 1 x Magnetic Contact (which would normally be fitted to the gatepost), 1 x Magnet (which would normally be fitted to the gate), 1 x Battery Powered Wireless Transmitter (which is connected to the Magnetic Contact Switch) and a Control Panel inside the house.

The Control Panel is mains powered but also has a built in battery back up (for continued operation through a power cut), it has a built in Keypad and Internal Siren (which has an adjustable time duration).

The Control Panel will contact up to 9 key-holders by Telephone & Text Message together with activating the Built in Siren if the Gate is opened whilst the Panel is Armed.

You can add a Remote Control which can be used to Arm & Disarm the Alarm Panel from up to 50 metres away, you can also Arm & Disarm the Alarm by Text Message, Built in Timer or by using the APP.

The working distance between the Gate & Control Panel is 100 metres (line of sight) which equates to around 30 - 50 metres in most applications, you can add a Mains Powered Wireless Repeater which will double the operational distance if required.

Control Panel:

The GSM Control Panel is packed full of features normally only associated with expensive professional Alarms, they include:

• 95 x Wireless Zones (channels).
• Contacts up to 9 x Key-holders by Telephone & Text Message (optional).
• Built in Siren (adjustable duration from 0 to 999 seconds).
• This Alarm operates on 2G, 3G & 4G Networks !!
• Adjustable N/O or N/C Output Relay (1 - 999 seconds, can be used with Sirens).
• Output Relay Rating: 240 v AC up to 3 amp.
• Simple Plug in Power Supply with Backup Battery (ideal for DIY installations).
• Can be used with a Wireless Siren (H/Duty).
• Easy to Program (using the built in keypad and LCD Screen or APP).
• Easy to Operate using:
  • Remote Control.
  • Built in Keypad.
  • Built in Timer.
  • Text Message.
  • APP.
• Many Modes of Operation including:
  • Full Arm.
  • Home Arm.
  • Entrance.
  • On Site.
  • Outer.
  • Inner.
  • 24 Hour (with Siren).
  • 24 Hour (silent).
  • Not in Use.
  • Doorbell.
• 2 x Wired Input Zones (for use with wired sensors).
• Built in Power Failure (optional).
• Built in Temperature (optional).
• Built in Tamper Switch.
• 2 x way Communication.
• Log (history) Logging.
• Low Battery Warning (of accessories).
• 12 Language Menu (including English, French, German, Italian, Dutch & Spanish).

SIM Card:

The Alarm Panel requires a SIM Card (standard size) which can make Phone Calls & send Text Messages (no data is required), you can select a SIM Card at the top of this page or supply your own.

Communication:

When the KP9 GSM Panel calls key-holders by Telephone, the key-holders have the option to:

• Press * on their Telephone (this will stop the alarm calling other key-holders but remain fully armed.
• Press # on their Telephone (this will stop the alarm calling other key-holders but will disarm the panel.

Wireless Gate Contact:

The Wireless Transmitter is supplied inside a weatherproof box and is connected to the Magnetic Contact by around 300 mm of steel protected cable, the Contact would be mounted on the Gate Post in such a position that when closed you can fit the magnet supplied so that both halves are nearly touching.

When the Gate is opened, a Wireless Signal would be transmitted once to the Control Panel inside the house, if the Gate is left open this will not flatten the Transmitters battery.

Wireless Accessories:

You can add an incredible 94 more Wireless Sensors & Detectors to this Alarm system allowing you to get the best return on your investment, the choice includes:

• PIR's (standard, curtain & pet friendly models).
• Door Contacts (various models).
• Vibration Sensors.
• Smoke Detectors.
• Remote Controls.
• Water Detectors.
• Pressure Mats.
• Roller Shutter Contacts.
• Gate Contacts.
• External PIR's.
• Panic Buttons (various options available).

The range between the accessories and control panel is normally around 50 metres (line of sight) which equates to 20 - 30 metres in most applications, for locations requiring further range a Signal Booster can be added.

Sirens:

This Alarm Panel has a built in Siren which can be programmed to operate between 1 second to 16 minutes when activated, it can be turned off before this time by the owner using a Remote Control or build in Keypad

This is really a great value, high specification Alarm System !!
