UltraDIAL battery powered 3G GSM Wireless Door/Window & PIR Alarm, this kit will call up to 3 x key-holders by Phone & SMS when triggered together with sounding the Siren built into the PIR, supplied with 2 x Remote Controls.
This product is no longer in stock

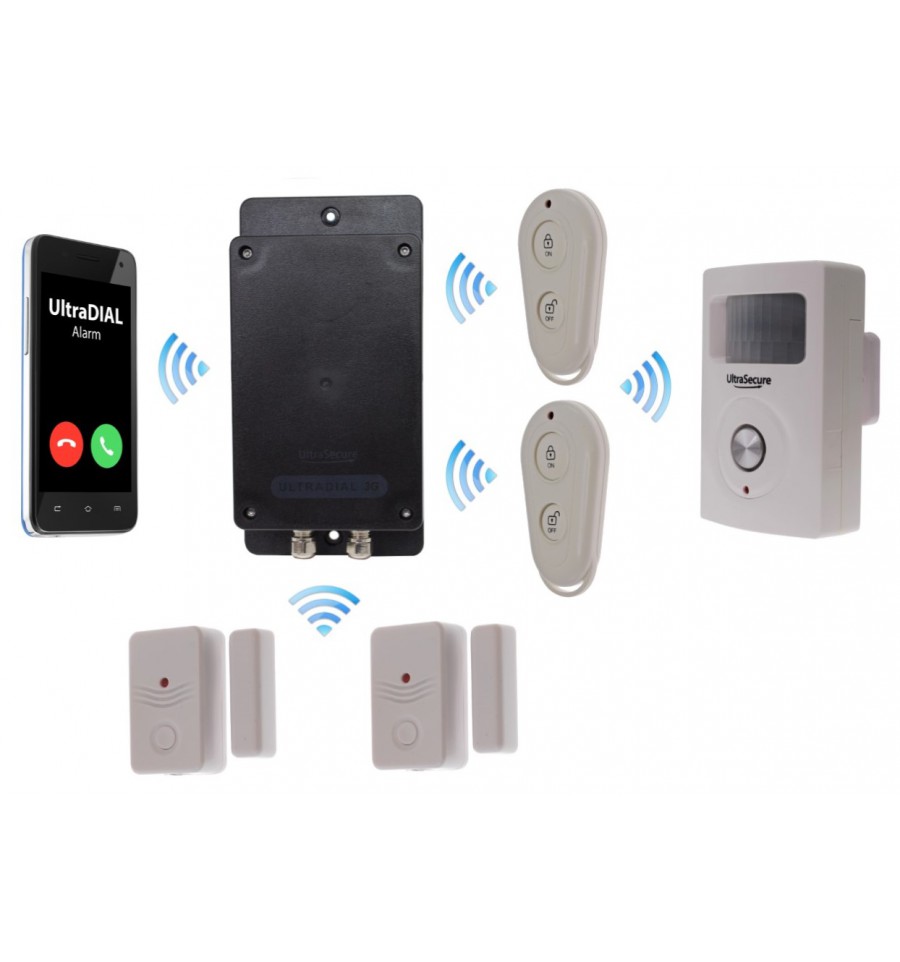

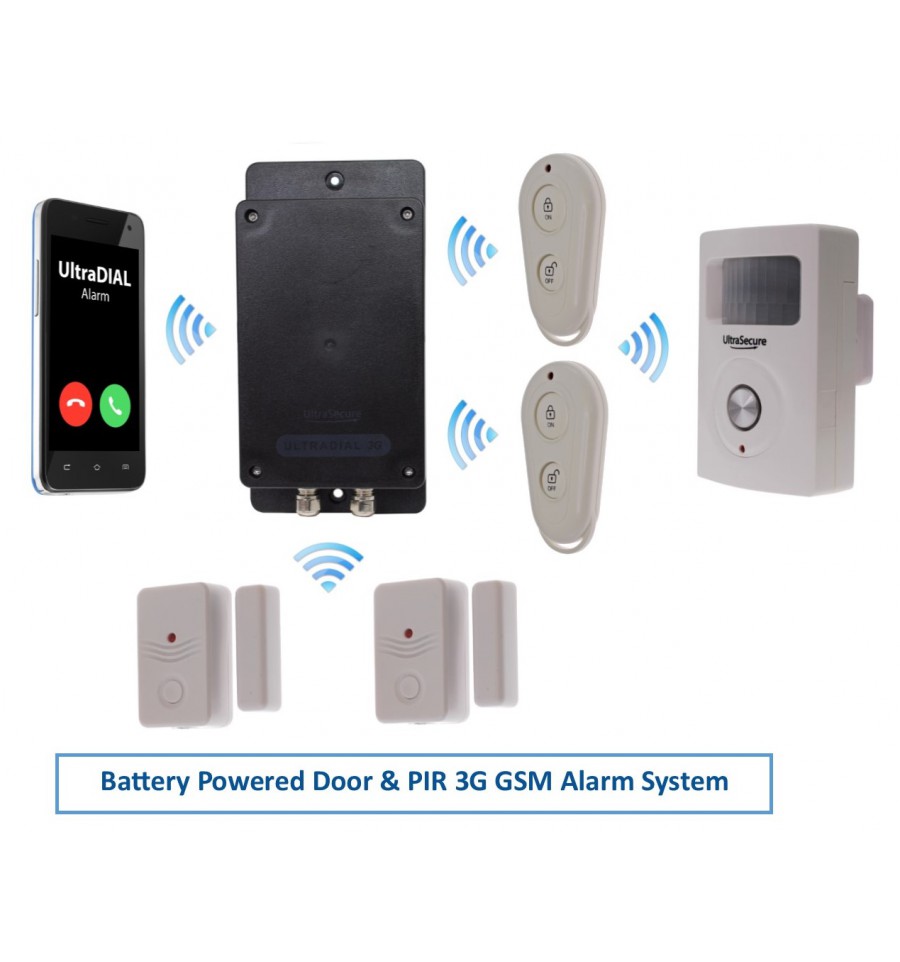

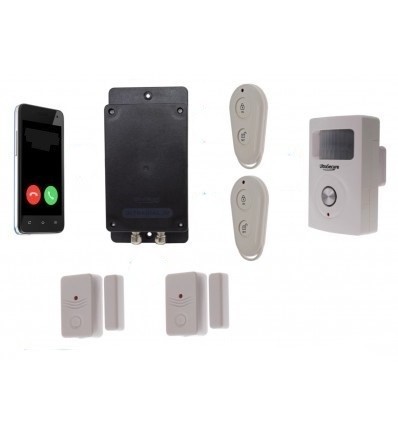

UltraDIAL battery powered 3G GSM Wireless Door/Window & PIR Alarm, this kit will call up to 3 x key-holders by Phone & SMS when triggered together with sounding the Siren built into the PIR, supplied with 1 x Remote Control, 2 x Wireless Magnetic Contacts & 1 x BT PIR.
How it Works:
This kit comprises of a battery powered 3G GSM UltraDIAL Covert Alarm Dialler & 2 x battery powered Wireless Magnetic Contacts & 1 x PIR with a built in Siren. The UltraDIAL, Contacts & PIR are connected to each other within a unique Wireless Network and are all Armed & Disarmed at the same time using the Remote Controls.
The Magnetic Contacts are fitted onto a Door or Window together with the Magnet being fitted onto the frame in such as position that both parts are nearly touching when the Door or Window is closed.
The Battery powered Wireless PIR has a built in Siren, and would be fitted into the corner of a suitable room.
If the Door or Window is opened or the PIR detects a person when the Alarm is Armed, they will trigger the UltraDIAL Alarm which will be secretly contacting up to three key-holders by Telephone & SMS together with sounding the Siren in the PIR. Additional Door Contacts & PIR's can be added (no limit).
The secret of using this Alarm is to hide (or lock) away the UltraDIAL in a location where an Intruder wouldn't even know it is there, this is very easy due to the fact it is battery powered and wireless.
This simple Alarm is ideal for so many applications, examples are:
Wireless Door & Window Contacts:
The Magnetic Contacts would be fitted onto the Door/Window with the Magnet being fitted onto the frame, when the Door/Window is closed both parts would ideally be within 5 mm of each other (for some installations you may choose to install the two components in the opposite way). When the Door/Window is opened, the Contacts will send a Wireless signal up to 100 metres to the UltraDIAL Alarm.
The PIR has a built in 130 Decibel Siren will sound for 60 seconds when activated, but still remain fully armed (so will trigger again if the intruder is still present or re-enters the building.
It has a 30 second exit delay (plenty of time to leave the building and lock up) and a 5 second entry delay (normally disarmed from outside the building before entering).
It has a 8 metre distance, 120 degrees horizontal & 90 degrees vertical detection pattern and is powered by 3 x AA batteries (supplied).
Additional Detectors & Sirens:
If you want to expand the Alarm, you can add the additional Detectors to it as shown below:
The wireless operating range of 100 metres (line of sight) between the accessories and the UltraDIAL equates to around 40 - 50 metres in many applications, which allows various buildings to be protected at the same time, many customers will cover two, three or even four buildings with this Alarm.
Arming & Disarming:

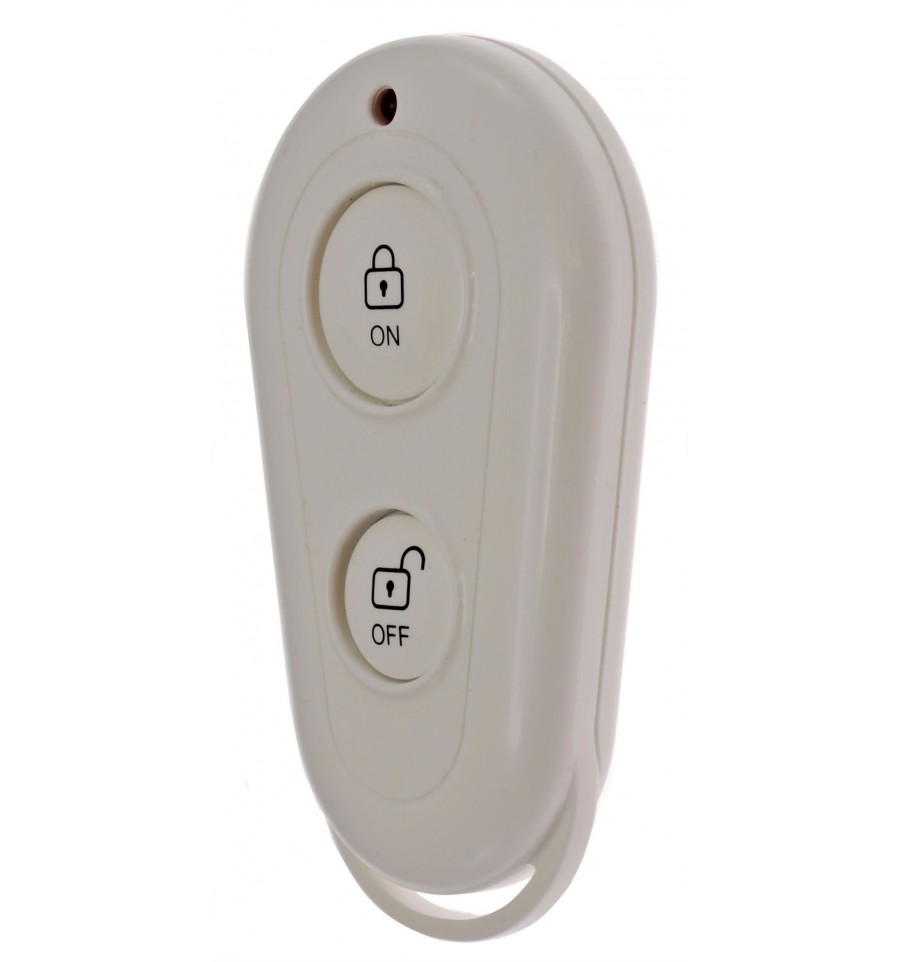

The Alarms are Armed & Disarmed by using the Remote Controls (supplied) from up to 100 metres away, up to 9 Remote Controls can be used with each Alarm.
If the UltraDIAL Alarm is powered by the external 5v power source, then it is possible to Arm & Disarm the Alarm via SMS (text message).There is a 30 second Exit Delay built into the Alarm for easy use.
The Alarm will contact between 1 & 3 key-holders (depending on how you have chosen to program the alarm) by Telephone & SMS (either can be turned off whilst programming the alarm) when activated.
It will normally take take between 30 - 60 seconds to call the first key-holder when powered by battery, and quicker when powered by a plug in transformer or usb cable (this can vary depending on the mobile phone networks at the time).
You can record a 30 second message into the Alarm, which will be replayed to the key-holders when the Alarm calls them.
The UltraDIAL Alarm is powered by 3 x Lithium AA Batteries (supplied) which will last around 6 months in most applications, it can also be powered by a 5v Plug in Transformer or USB Cable where a power supply is available. If the power supply is used, the batteries can be kept in the Alarm as a backup although they will not be charged by the device.
The BT PIR (007-0200) is powered by 3 x AA Duracell Batteries.
Receiving a Call:
When the Alarm calls the key-holders, there is the choice to:
Wired Alarm Detectors:
The UltraDIAL has one momentary volt free Inputs, 1 x N/O or N/C, these can be used with many types of devices, examples listed below:
Normally Open going Closed:
Normally Closed going Open:
The UltraDIAL is very easy to program, probably the easiest GSM Alarm to program on the market today by using the small built in keypad, following some very simple instructions.
The UltraDIAL is fully weatherproof and rated at IP66, so can be used in most locations, it is not however designed to be submerged.
The UltraDIAL Alarm will send the primary key-holder a SMS (text message) if the batteries are getting low.
The Alarm can be programmed to send you a status report once a week at 9am, this function can is optional and doesn't have to be used.
Mains Power Failure:
When the Alarm is being powered by an external 5v power supply, it will send the primary key-holder a SMS (text message) in the event of a Power Cut together with another when the power comes back on (provided you also have batteries fitted).
The lid is fitted with 4 x security screws and a tool is supplied as standard.
Due to the fact that we believe this Alarm should be used as a Covert Alarm and hidden safely away from sight and reach whenever possible, we have kept the branding low key.
The Alarm uses a standard size SIM Card (PAYG or Contract), please be careful with some PAYG Contracts as they can remove your outstanding balance at the end of every month even if it hasn't been used, or cancel the Card with no notice if it hasn't been used.
Because of this we do offer a Roaming (M2M) SIM Card for customers purchasing our alarms (at pure cost) because they are designed for use in Alarms, full details of these can be found (HERE), you will see the option of adding a SIM Card next to the Add to Cart Button.
If you purchase your own, you note you do not need Data when asked.
This is a very versatile Security device ideal for many applications designed by Ultra Secure Direct.
If you need advice, please Contact Us !!
