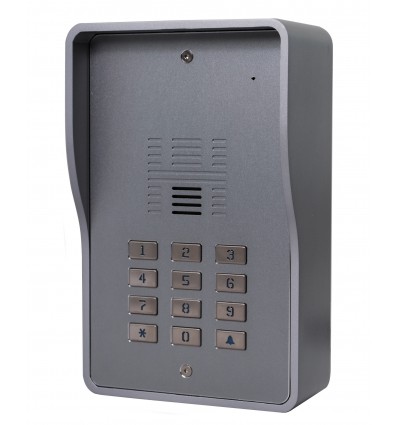

4G GSM intercom – robust anti-vandal keypad unit with remote gate/door release (up to 200 apartments)

4G GSM 200 Apartment Audio Intercom:

• Anti-vandal design (diecast aluminium).
• Operates with up to 200 Apartments.
• Can call up to 3 x numbers with each Apartment (mobile or landline).
• 2 x N/O & N/C Relay Outputs (adjustable).
• Digital Keypad.
• Versatile Configuration (relay duration, volume control, call delay).
• Full Duplex communication.
• Operate from anywhere in the world (with phone signal).
• Simple SMS Set Up.
• Affordable (sharing cost between apartments).
• Can operate Gate & Door Locks remotely.
• Listen in option.
• Operates on 4G, 3G & 2G Networks.
• Can be Flush or Recess fitted.
• IP-65 Weatherproof.

Output Relays:

The Output Relays can be connected to Electric Gate & Door mechanism with fully adjustable duration options (1 - 9999 seconds).

The Intercom operates using Mobile Phone technology (SIM Card) therefore a mobile phone signal is required at the location of the Intercom, the Intercom uses a standard size SIM Card (not supplied), but options are available within this listing.

Details about the SIM Card options can be found in the links below:

• 20 Plan.
• 50 Plan.

Fitting:

The Intercom can be fitted Flush or in a Recess.

Operating the System:

• Visitor Arrives & Presses the Call Button followed by the Apartment number.
• The Intercom calls the first key-holders programmed number (if it is not answered it will call the 2nd & 3rd programmed number in sequence).
• When a key-holder answers, two way communication is opened up between Family member and Visitor.
• If the Family member wants to operate a Gate or Lock, they press 1 or 4 on their Telephone Keypad (this triggers output relay 1 or 2, which should be connected to the Gate or Door Lock)
• Finish Call.

Please Contact us for Advice !!
