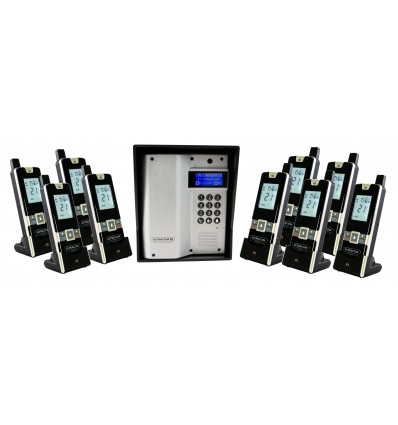

Wireless long-range apartment intercom 600m – UltraCOM3 silver (with screen & keypad) + black hood & 9 handsets

'UltraCom3' 600 metre Nine Apartment Wireless Intercom with a Digital Display Screen which can be powered by Battery or DC, designed to communicate with nine separate Apartments from the single Caller Station.

It has clear 2-way Secure Communication with the ability to operate Electric Gates, Doors or Locks from:

• The Portable Indoor Handset.
• The built in Keypad on the Caller Station (for trusted visitors).

Silver Caller Station with Black Hood model.

This unique Battery or DC Wireless Intercom is packed full of features including:

• Communicates with Nine Apartments.
• Digital Backlit Display Screen (used for calling the resident & programming the device).
• Name or Number Display: Yes (bespoke names or numbers can be programmed into the display screen).
• Powered by:
  • Battery: Yes (4-C Batteries lasting up to 12 - 18 months in most domestic applications).
  • 12 - 24v DC (max 2 amp).
  • Plug in Transformer.
• Caller Station Keypad Pin (for relay operation, programming).
• Class Leading 600 metre Wireless Operating Range (line of sight).
• Portable Handsets (allows communication and operation of the gate, door or lock).
• Multiple Handset Option (multiple handsets can be used by any resident).
• Gate & Door Lock Release Outputs (volt free N/O & N/C relay).
• Adjustable Duration Outputs (1 - 99 seconds).
• Secure Push to Talk Handset Digital Communication (keeps communication very secure).
• Optional Aerial Connector (ideal for mounting an additional External Aerial onto the rear of a gate post or wall).
• Weatherproof (IP54) Silver Caller Station supplied with an additional Rain & Sun Black Hood.
• Digital Screen Wake Up Options: 4.
  • Always ON (not recommended when using battery only).
  • Touch (screen wakes up upon the touch of any key).
  • Low PIR (prox) Movement (screen wakes up when someone walks past at a distance of 2.5 metres).
  • High PIR (prox) Movement (screen wakes up when someone walks past at a distance of 5 metres).
• Adjustable Volume: Yes (on handset & caller station).
• Low Battery Warning: Yes (on caller station & handset).
• Two Languages: English & French.
• Great Price - Unique Product.

Caller Station:

The Caller Station is supplied with a clear backlit Display Screen which is used (via the built in keypad) to select the resident for communication and to program & manage the system.

The Backlit Display Screen has 4 settings:

• Always ON (not recommended when using battery power).
• Touch Screen (wakes up upon the touch of any key).
• Low PIR (prox) Movement (screen wakes up when someone walks past at a distance of 2.5 metres).
• High PIR (prox) Movement (screen wakes up when someone walks past at a distance of 5 metres).

The Keypad (pin) can also be used to operate the Output Relay for trusted visitors or select the chosen resident if the number is known.

The Caller Station is powered by:

• 12v - 24v DC (max 2 amp) which is often taken from the circuit board on Electric Gates & Doors.
• Batteries (4 x C Batteries), which will operate for up to 12 - 18 months in most domestic applications.
• Plug in 12v DC Transformer (3 or 2-pin).

Output Relay

The Caller Station has a set of N/O or N/C Output Relays with adjustable duration from 1 - 99 seconds.

Portable Handsets:

The Portable Handsets are supplied with a charging cradle which are powered by a Plug in Transformer (3 & 2-pin supplied), once charged the Handsets are Portable.

Multiple Handsets can be added (no limit) for Residents wanting to have them in different locations within the Apartment.

 The Handsets have many features including:

• Digital Secure Two-way Communication.
• Chime, Vibration & Flashing Alert (all adjustable).
• Fully Portable.
• Volume Control.
• Multiple Handset Option (no limit to how many handsets can be used by any resident).
• Internal Communication: (for residents using multiple handsets they can be used for internal communication).
• Gate & Door Release Functions.
• Battery Level Indicator.
• Privacy Push to Talk Feature (designed for secure communication).
• Missed Call Indicator.
• 600 metre Operating Range (line of sight).
• UK, EU & U.S Charger supplied.

Aerial:

We can offer an additional Aerial which is designed to help Wireless communication, it is not a booster aerial, it is an aerial which allows for a more direct wireless path back to the Handset, the most common use would be to fit the Aerial on the back of a large Gate Post which immediately removes the Gate Post from blocking any Wireless signals.

Option Extras:

The following accessories can be added to this Wireless Intercom System, including:

• External Aerial (very popular with being fitted onto the rear of a gatepost or pillar to optimize the wireless operating range).
• Additional Portable Handsets.
• Plug in Power Supply.
• External Aerial Extension Cables.

This is a unique Wireless Intercom System that can be powered by DC or Battery, and can operate with up to Nine Apartments (if expanded) or with a single dwelling should the owners require multiple Portable Handsets.

Please Contact Us for any Advice !!
