Wireless outdoor alarm (150m) – 1 PIR motion detector with solar siren security system (HY)

HY Outdoor Solar Wireless Alarm designed to be used in many applications such as:

• Yards & Gardens.
• Scaffolding.
• Protecting Parked Vehicles & Tools.
• Shed, Garages & Workshops.

Supplied with a Solar Wireless Siren (which doubles up as the control panel) and is Armed & Disarmed using the Remote Control supplied, no need for any Electrical Power Supply.

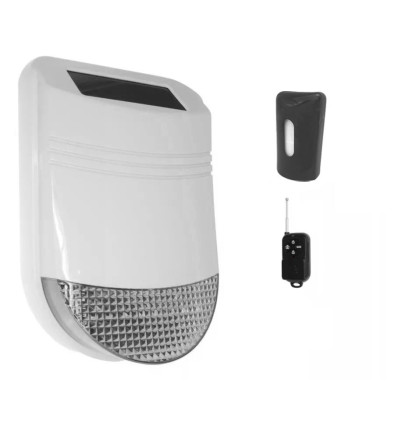

The Kit includes:

• 1 x Solar Siren & Control Panel.
• 1 x Remote Control.
• 1 x Wireless HY Pet friendly PIR.

How to Install:

1. Pair the PIR & Remote Controls into the Siren (we will do this for you when it is purchased as a kit).
2. Mount the Siren on a suitable wall, post or scaffold pole (ideally in a South or East facing position to help with the Solar charging of the Siren).
3. Mount the PIR onto a suitable location.

How it Works:

The Solar Siren & Control Panel is powered by a built in lithium battery which is charged and maintained by the top mounted Solar Panel, it also has a built in tamper switch should someone try to remove it. This Siren doubles up as the Alarm Control Panel and is Armed & Disarmed using the Remote Control supplied (a further 7 could be added).

The Siren would be fitted onto a wall, post or scaffolding (ideally on a South or East facing wall) using screws and wall plugs (a scaffold mounting plate can be purchased for scaffolding), no power supply is required.

PIR:

The PIR has a 9 - 12 metre detection range and a wireless range back to the receiver of 150 metres (line of sight), which equates to around 30 - 40 metres in most applications, this can be extended (doubled) by using the Plug in Signal Booster.

The Rubber Hood which simply slides over the top of the PIR also supplies additional weather protection, never a bad thing with electrical equipment.

Powered by 2 x AA Batteries.

Siren:

The Siren once activated would operate for 3 minutes (which could be turned off at any time using the Remote Control) and then automatically switch off, but remain fully Armed ready to be triggered again.

There is no time delay, you would Arm & Disarm the Alarm using the Remote Control before walking past the PIR.

There is a wide range of accessories that can be added to this Alarm System, you can use up to 12 standard Alarm detectors (magnetic contacts, pir's etc) and 4 detectors that are always turned ON (smoke & panic buttons etc), these include:

• Magnetic Contacts.
• Standard PIR's.
• Pet Friendly PIR's (will not detect combined animals under 10 kilo).
• Remote Controls.
• Smoke & Heat Detectors.
• Smoke Detectors.
• Panic Buttons.
• Vibration Sensors.
• Outdoor PIR's.
• Curtain PIR's.
• Roller Shutter Door Contacts.

There are many other accessories available, please contact us for advice.

The Wireless Range between the Siren and accessories is 100 metres (line of sight) which equates to around 40 - 60 metres in most applications (this can be doubled by adding a signal repeater).

SOS:

The Remote Control also has a SOS Button on it, allowing homeowners to trigger the Siren at any time from inside or outside the property.

 An ideal Alarm for customers not wanting to get a power supply to the Alarm, can be used on Scaffolding, Business Premises, Workshops, Barns, Garages etc !!
