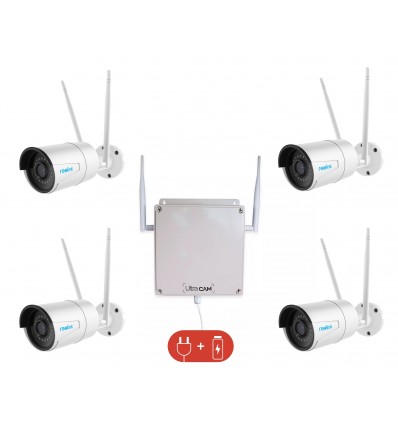

IP65-resistant 4G control box + 12V transformer + backup battery - customisable kit (UltraCAM)

This 4G control unit kit is supplied with a transformer. It can provide WiFi to as many as eight IP cameras at the same time (though this number may decrease with higher resolution cameras). This enables mobile surveillance installations in remote areas lacking WiFi networks, such as construction sites. The kit includes four wireless 12V Reolink (RLC-410W) CCTV cameras.

Reolink (RLC-410W) CCTV Camera:

A Mains Powered (12V) wireless Reolink (RLC-410W) CCTV Camera. This Camera is ideal for protecting and monitoring your Home & Business, features include:

• Free APP (Live Stream, View Recordings, Get Notifications).
• Quality Super H/D Resolution. (4MP - 2560 x 1440)
• 30 Metres Night Vision.
• Motion Detection.
• FTP Support.
• Email Notification.
• Fully Weatherproof.
• Microphone.
• 30FPS.
• H.264 Compression.
• CMOS Sensor.
• Micro SD card slot (Max. 128GB).
• 3D DNR Noise Reduction.

MIMO antennas - Stronger network signals, even in up to 50 meters long distance (in open areas)

Smart Motion Alerts Lets You Never Miss What Matters - Detect any potential danger, by sending real-time email alerts and pushing notifications to your mobile device - Upload and save captured images and videos to an FTP server and the Micro SD card (128gb supplied) - Adjust motion detection sensitivity and create specific motion detecting zones in the free app to avoid false detection.

High Quality Night Vision - This Reolink RLC-410W camera has 18 LED infrared LED Lights, which gives a clear night image. The camera night vision range is up to 30 Metres, helping to prevent a potential intruder.

IP66 Certified Weatherproof Design - This Camera can stand harsh weather conditions, including rain, snow, intense cold and heat.

Please note we recommend a junction box for a simple and quick installation of this camera.

• To hide the cables.
• To hide the cables and mount to Junction Box.

4G UltraCAM controller:

Mobile Surveillance System!

This 4G controller casing operates using the included transformer. It supplies power to a PoE (Power over Ethernet) camera through its RJ45 port and can also create a secure WiFi network, allowing connection to up to 8 wireless cameras. This setup enables simple and effective monitoring of isolated and network-deficient areas, such as construction sites.

4G Network: No constraints

You can install the UltraCAM 4G controller casing anywhere you choose, as it connects to the network through its own SIM card (not included), functioning similarly to a mobile phone. This 4G controller casing is conveniently compatible with all most network operators and utilizes the 4G network for connectivity.

What happens if there is a power outage?

What use is a video surveillance system for a construction site, home, or business if it fails during a power cut, be it accidental or deliberate? With this in mind, we've engineered the UltraCAM controller unit featuring an inbuilt backup battery. This ensures the system remains operational, maintaining power even in the event of a power outage.

Expect up to 3 hours of battery backup life, which provides ample time to intervene and restore power (these figures can vary depending on the type/number of cameras in the system).

SIM Card Required

Regarding the SIM card and necessary plan for the 4G control box, it's advisable to allocate at least 1 GB of data per month for each camera. Please note that data usage can vary significantly based on individual usage, so providing a precise estimate for everyone is challenging.

Weather-resistant

The casing is robust and designed for outdoor installation. It is IP65 certified. Indoor use is, of course, possible. It can be easily installed using its integrated mounting holes.

Power Supply on Provided Transformer

Only one power cable needs to be connected for operation! Simply plug the 4G controller casing into the mains using the provided transformer (cable length 180 cm).

What if there is a power outage?

Please note that our UltraCAM 4G controller casing is available in a version equipped with a backup battery ("coming soon"). This option ensures the power supply to the surveillance system in case of a power outage (accidental or criminal). The battery life varies depending on the type and number of cameras within the UltraCAM system; however, it allows for continued video surveillance of your property until the power is restored. An added security feature!

Scalable and Customizable System

Enhance your UltraCAM video surveillance system by adding one or more cameras from the list of compatible UltraCAM models (002-3380, 002-2775, 002-2778, 002-2750, 002-3260, 002-3271, 002-3320, 002-2630). The system can support up to 8 cameras simultaneously (1 hard wired at a time).

Create the ultimate video protection network, tailored to your environment and equipped with the most appealing features for you (wide angle, optical zoom, PTZ, long-range night vision, etc.)

Custom Design

This product embodies the expertise of our technicians, who have been crafting bespoke and unique solutions for over 15 years. Our goal is to provide solutions that align seamlessly with your requirements.

Create the system you envision by incorporating trigger elements and alerts into your order from our selection of accessories. Alternatively, reach out to us directly to collaboratively develop a solution tailored to your needs.
