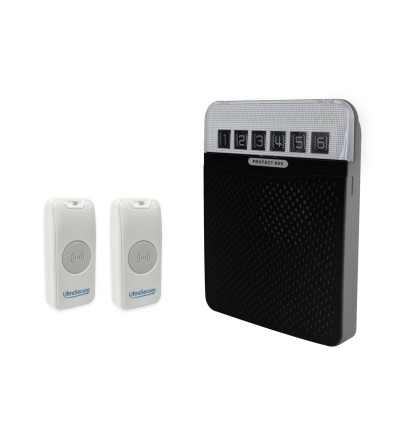

Protect-800 - Long Range 800 Metre Doorbell Kit

The Long Range Wireless Doorbell (Protect 800) is the perfect solution for situations where traditional doorbells fail to perform reliably. This system includes 2 battery operated push buttons and a plug in 6 channel receiver with adjustable volume, offering 32 chime options. Additionally, it features optional 12v relay output, ideal for integrating flashing strobes or buzzers. With an impressive 800-metre transmission range (400-600 metres in typical applications), it's suitable for large homes, outbuildings, garden offices, or business premises. You can add extra push buttons to cover multiple entrances, each with unique chimes and visual notifications. Powered by a long-lasting 3v CR123A battery (12-18 months), the system also alerts you in case of low battery. Reliable and adaptable, it’s the ultimate choice for your doorbell needs.

How it works

When either push button is pressed, the push button sends a wireless alert to the 6-channel receiver, The receiver will chime (32 difffernt chime options per zone) and will light up the corresponding zone that has been triggered, ensuring you’re instantly notified of a visitor.

Wireless Receiver (6 Channel):

Meet our feature packed indoor Receiver from our Protect 800 range, that's designed to give you peace of mind. With a wireless range of up to 800 meters and support for up to 30 detectors, it’s ready to secure any space. Customize alerts with 6 adjustable channels, LED notifications, and your choice of 32 melodies. Worried about power outages? It comes with a battery backup, loss-of-power alerts, and even a low battery notification. Whether you prefer it wall mounted or desk mounted, this Receiver adapts to you.

Battery Back Up:

You can add 3 x LR14 (C Type) Batteries into the Receiver which will ensure full operation in the event of a Power Failure.

Output Relays & Voltage:

There is a set of N/O & N/C Momentary Output Relays together with a 12v DC Output for use connecting accessories to the Receiver when required.

Key Features

Wireless Range: Operates up to 800 metres in a clear line of sight.
Adjustable Volume: Yes, ranging from low to approximately 85 decibels.
Channels: Supports 6 unique channels.
LED Alerts: Provides visual notifications.
- Duration: 30 seconds of flashing, followed by a constant light until reset.
Alert Modes: Choose between:
- Chime only
- Chime with flashing LED
- Flashing LED only
Melody Options: 32 selectable tunes.
Mute Functionality: Mute channels selectively: 1, 2, 3 or 4, 5, 6.
Power Supply: Includes UK 3-pin and EU 2-pin transformers.
Battery Backup: Compatible with 3 x LR14 (C-type) batteries (not included).
Power Notifications:
- Mains failure alert: LED notification.
- Low battery alert: Yes.
Device Capacity: Supports up to 30 detectors.
Multiple Receivers: Unlimited.
Zone Indicators: Visual and auditory alerts for active zones.
Relay Output: One dry relay output (N/O & N/C Momentary).
12v DC Output: Adjustable duration settings.
Relay Activation: Momentary operation.
Mounting Options: Wall or desk installation.
PIR Battery Check: Yes.
Pause Modes: Optional, via button or remote control.
Remote Control: Optional accessory (not included).
Power Input: 12v DC, 1 Amp.
Frequency: 868MHz.

Additional receivers can be found here

Optional Remote

The optional remote control allows for convenient management of the indoor receiver, enabling users to arm, disarm, and stop alerts remotely. The remote operates independently of specific zones and can control groups of zones. For instance, Arm (1-3) button arms group 1 (zones 1-3), while Arm (4-6) button arms group 2 (zones 4-6). Similarly, Disarm (1-3) and disarm (4-6) disarm these groups. During an alert, Stop (1-3) or Stop (4-6) can stop the audible alarm, strobe LEDs, and clear the zone LED with successive presses. This system enhances the flexibility and usability of the receiver.

Optional Remotes can be found here

Additional Detectors can be added to this system, these include:

PIR's
Vehicle Detectors
Gate Contacts
Push Buttons
Transmitters (for use with other sensors)
Additional Indoor & Outdoor Receivers can also be added (no limit)
