2 channel siren & strobe 800 metre wireless receiver box - weatherproof - Protect-800

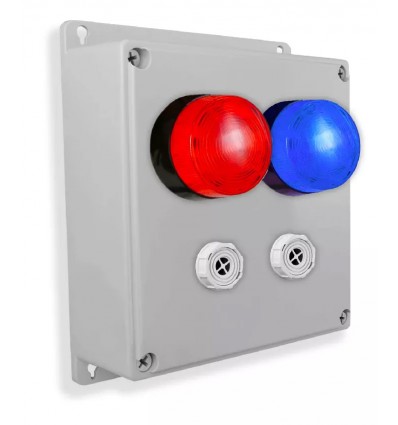

Protect-800 Wireless 2 Channel Siren & Strobe Box (unique to Ultra Secure):

• 2 x Adjustable Sirens (tone, volume & duration).
• 2 x Flashing Strobe Lights (red & blue).
• 2 x Channels.
• 800 metre Wireless Range.
• Fully Weatherproof.
• Operates with all Protect-800 Transmitters.
• Expandable (multiple boxes can be used).
• 3-pin 12v DC Power Supply (simple installation).

This unique 2 Channel Receiver is designed to be used in various applications including:

• Long Range Warehouse Bells (with 2 entrances).
• 2 Channels Panic Alarms.
• Wireless Door Bell & Panic Alarm.

How it Works:

The Weatherproof Receiver Box would be paired to two different Protect-800 Battery Transmitters, one Transmitter would operate one Siren & the Red Flashing Strobe, the second Transmitter would operate the second Siren & the Blue Flashing Strobe.

The duration time of each channel (when activated) is fully adjustable from seconds, to minutes to fully latched on, this is done by simple adjusting the dip-switches inside the Receiver Box.

Examples could be:

• Wireless Doorbell with 2 Entrances (both Sirens, Red & Blue Strobes set to 10 seconds).
• Wireless Doorbell with 2 Entrances (one Sirens & Red Strobe set to 5 seconds, the second Siren & Blue Strobe set to 30 seconds).
• Wireless Doorbell & Panic Alarm (one Sirens & Blue Strobe set to 5 seconds, the second Siren & Red Strobe set to fully latched ON until Help has arrived).

The system is supplied with a Remote Control which can be used to reset the Receiver Box but can also be used as a Panic Alarm (SOS features).

Siren:

The Sirens have volume control (up to 106 Decibels) and a choice of 32 different tones allowing you to select the one most suitable for your environment.

Strobes:

The different Colour Flashing Strobes help easily & quickly to determine which Transmitter has been pressed.

Transmitters:

This Receiver Box can be operated by any Protect-800 Battery Transmitters, these can be viewed within this link (if you have any questions please ASK).

The Wireless operation range between the Protect-800 Transmitters and Receiver Box is 800 metres (line of sight), which equates to around 400 - 600 metres in most applications.

Installation:

The easy to mount weatherproof box is simply fitted to the wall using 4 x screws through the side mounted lugs and is powered by a 3-pin plug, this plug can be used into a suitable external socket or inside a building with the cable going through the wall.

The Receiver Box would be wirelessly paired to the relevant Transmitters before Installation by following a simple procedure shown in the manuals.

It can be used on both Internal & External walls.

If you need further advice, please ASK !!
