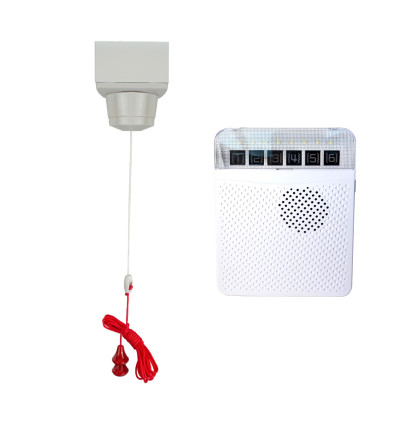

Disabled toilet long range wireless (800 metre) alert system (Protect 800)

Pull Switch Assembly:

The Wireless Pull Switch Assembly is an innovative solution powered by a built-in CR123A battery, offering a reliable lifespan of 12 to 18 months in most applications. Designed for easy installation, it comes ceiling-mounted with a 2-meter cord that can be easily adjusted to suit specific needs. The switch can integrate seamlessly with up to 30 Pull Cords or other Protect 800 Transmitters, ensuring flexible functionality. For secure mounting, the Pull Switch attaches firmly to the ceiling using appropriate fixings (not included due to varying surface requirements). Perfect for modern convenience and durability.

Wireless Receiver (6 Channel):

Meet our feature packed indoor Receiver from our Protect 800 range, that's designed to give you peace of mind. With a wireless range of up to 800 meters and support for up to 30 detectors, it’s ready to secure any space. Customize alerts with 6 adjustable channels, LED notifications, and your choice of 32 melodies. Worried about power outages? It comes with a battery backup, loss-of-power alerts, and even a low battery notification. Whether you prefer it wall mounted or desk mounted, this Receiver adapts to you.

Key Features

• Wireless Range: Operates up to 800 metres in a clear line of sight.
• Adjustable Volume: Yes, ranging from low to approximately 85 decibels.
• Channels: Supports 6 unique channels.
• LED Alerts: Provides visual notifications.
  • Duration: 30 seconds of flashing, followed by a constant light until reset.
• Alert Modes: Choose between:
  • Chime only
  • Chime with flashing LED
  • Flashing LED only
• Melody Options: 32 selectable tunes.
• Mute Functionality: Mute channels selectively: 1, 2, 3 or 4, 5, 6.
• Power Supply: Includes UK 3-pin and EU 2-pin transformers.
• Battery Backup: Compatible with 3 x LR14 (C-type) batteries (not included).
• Power Notifications:
  • Mains failure alert: LED notification.
  • Low battery alert: Yes.
• Device Capacity: Supports up to 30 detectors.
• Multiple Receivers: Unlimited.
• Zone Indicators: Visual and auditory alerts for active zones.
• Relay Output: One dry relay output (N/O & N/C Momentary).
• 12v DC Output: Adjustable duration settings.
• Relay Activation: Momentary operation.
• Mounting Options: Wall or desk installation.
• PIR Battery Check: Yes.
• Pause Modes: Optional, via button or remote control.
• Remote Control: Optional accessory (not included).
• Power Input: 12v DC, 1 Amp.
• Frequency: 868MHz.

Additional receivers can be found here

Optional Remote

The optional remote control allows for convenient management of the indoor receiver, enabling users to arm, disarm, and stop alerts remotely. The remote operates independently of specific zones and can control groups of zones. For instance, Arm (1-3) button arms group 1 (zones 1-3), while Arm (4-6) button arms group 2 (zones 4-6). Similarly, Disarm (1-3) and disarm (4-6) disarm these groups. During an alert, Stop (1-3) or Stop (4-6) can stop the audible alarm, strobe LEDs, and clear the zone LED with successive presses. This system enhances the flexibility and usability of the receiver.

Optional Remotes can be found here
