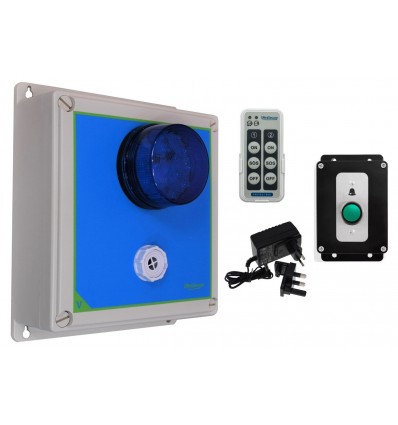

Wireless industrial doorbell kit (800m) – high resistance ‘Bell symbol’ button with wireless siren & strobe box (Protect 800)

Protect-800 Wireless Siren & Strobe Kit (unique to Ultra Secure):

• Can be used as a Panic (SOS) Alarm.
• Can be used as a Commercial Doorbell.
• Adjustable Siren (tone, volume & duration).
• Blue Flashing Strobe Light.
• 800 metre Wireless Range.
• Fully Weatherproof.
• Expandable (multiple boxes can be used).
• Black Battery Push Button.
• 12v Plug in Transformer Siren Box.
• Simple & Quick Installation.

This Protect-800 Wireless Kit can be used in various applications, the two most common are:

• Wireless Panic (SOS) Alarm.
• Long Range Commercial Doorbell.

How it Works:

The Wireless Battery powered Push Button is fully Weatherproof and is very Quick & Easy to Install, additional Push Buttons can be added or any other Protect-800 Transmitter (max of 8).

The Weatherproof Receiver Box would be paired with to the Push Button, this is done following very simply instructions in the manual supplied.

The duration time of the Siren & Strobe (when activated) is fully adjustable from seconds, minutes to fully latched on, this is done by simple adjusting the dip-switches inside the Receiver Box.

When the Push Button is activated the Siren and Bright Flashing Blue Strobe will operate for the pre-set duration (or until reset using the special remote control).

Power Supply:

The Receiver Siren Box is powered using a Plug in 12v DC Transformer making it Quick & easy to Install.

The system is also supplied with a Remote Control which can be used to reset the Receiver Box but can also be used as a Panic Alarm (SOS features), in this scenario the Siren & Strobe would latch ON (regardless of the pre-programmed settings) until it is reset using the same Remote Control (additional remote controls can be added).

Siren:

The Siren has volume control (up to 106 Decibels) and a choice of 32 different tones allowing you to select the one most suitable for your environment.

Strobe:

The Blue Flashing Strobe will operate for the same duration as the Siren.

Receiver Box:

Additional Receiver Boxes can be added to this system, please Click Here to view.

Transmitters:

This Receiver Box can also operated by any additional Protect-800 Battery Transmitters (max of 8), these can be viewed within this link (if you have any questions please ASK).

The Wireless operation range between the Protect-800 Transmitters and Receiver Box is 800 metres (line of sight), which equates to around 400 - 600 metres in most applications.

Installation:

Once the Push Button is paired to the Wireless Receiver (following a simple procedure within the manual supplied) it can be Quickly and Easily Installed into most locations (due to the fact it is Battery Powered & Weatherproof).

The easy to mount weatherproof Siren box is simply fitted to the wall using 4 x screws through the side mounted lugs and is powered by a Plug in Transformer, this plug can be used into a suitable external socket or inside a building with the cable going through the wall.

It can be used on both Internal & External walls.

Additional Internal Receiver:

It is also possible to add one or more Internal Chime Receivers which can be used in nearby Offices or Buildings.

If you need further advice, please ASK !!
